Automatic NC Membrane Laminator medical device manufacturers
1. Applicable product size (length x width x height/thickness): length: 301mm width: 30mm~100mm thickness: 0.2m~2mm
2. Film sticking accuracy (mm): 0.2mm
3 Film sticking speed: 600-1200 times/hour (comprehensive calculation
4 Weight (kg): about 100kg
5 Frequency (HZ): 50HZ
6 Voltage (V): 220V
7 Power (W): 750W
8 Air pressure (MPa) 0.4~0.8
9 Equipment dimensions (mm) (length x width x height): 850x460x660

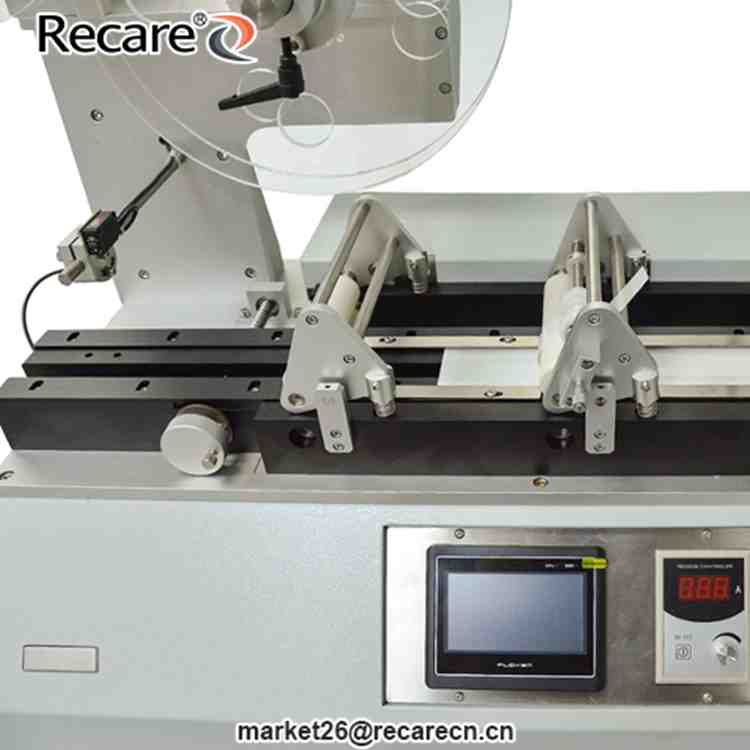

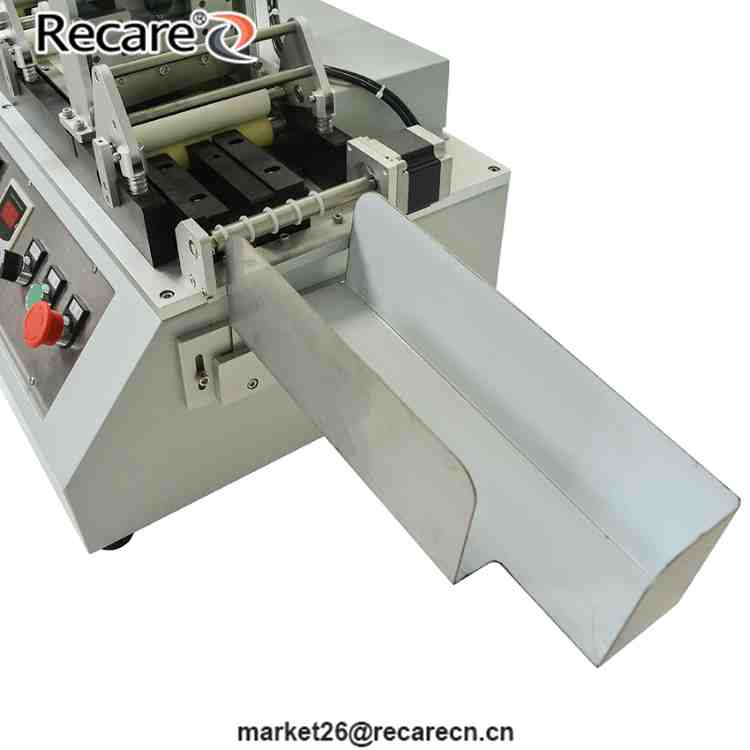

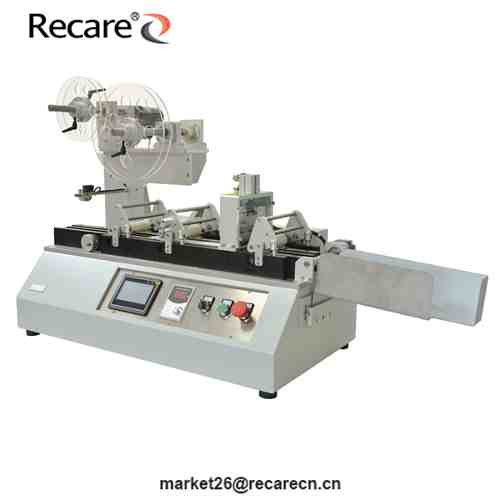

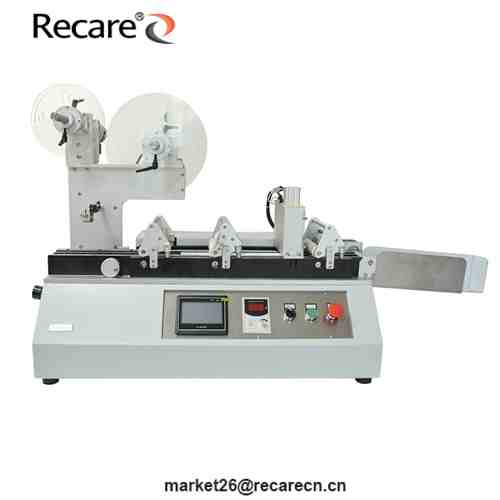

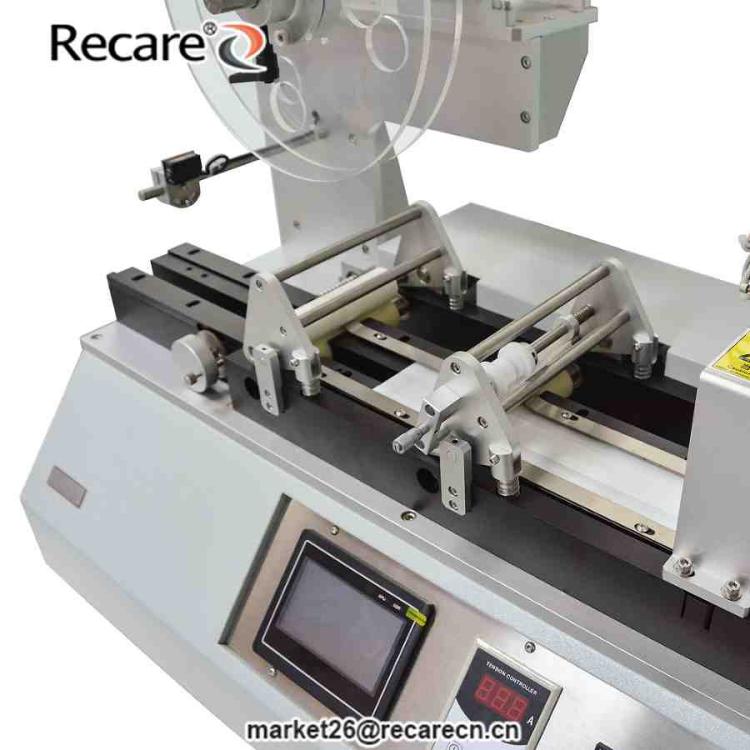

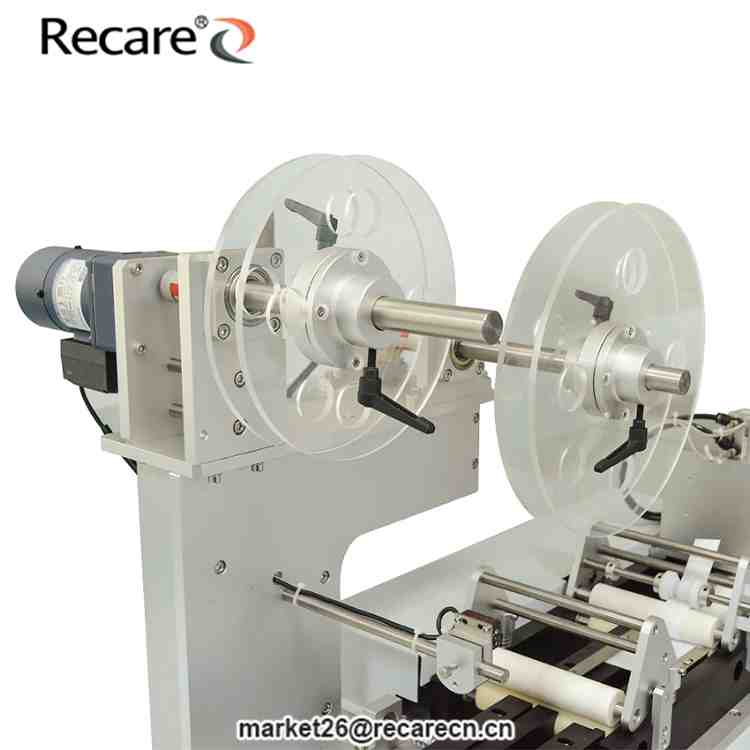

Automatic NC Membrane Laminator medical device manufacturers
The Automatic NC Membrane Laminator is used to stick the roll NC film to the PVC base plate on the gold label test paper production line, eliminating the subjectivity of artificial film sticking. The laminating machine can add the function of sticky absorbent paper according to the actual needs of customers
automatic rapid test lamination features:
1. Applicable to large cards with a width of 30mm~100mm and a length of 280-310mm
2. The machine has high film sticking accuracy, and the NC film sticking adopts the design of the standard belt bypass correction mechanism to ensure that the NC film does not deviate left and right during the traction process
3. The membrane rolling machine has high stability, and the advanced electronic control system composed of Panasonic PLC+Panasonic needle-shaped electric eye+stepping motor supports 7x24 hours of operation of the equipment.
Our rapid test roller laminator are very simple and easy to operate and ro membrane rolling machine price is good. We have served more than 1,000 machine buyers.
