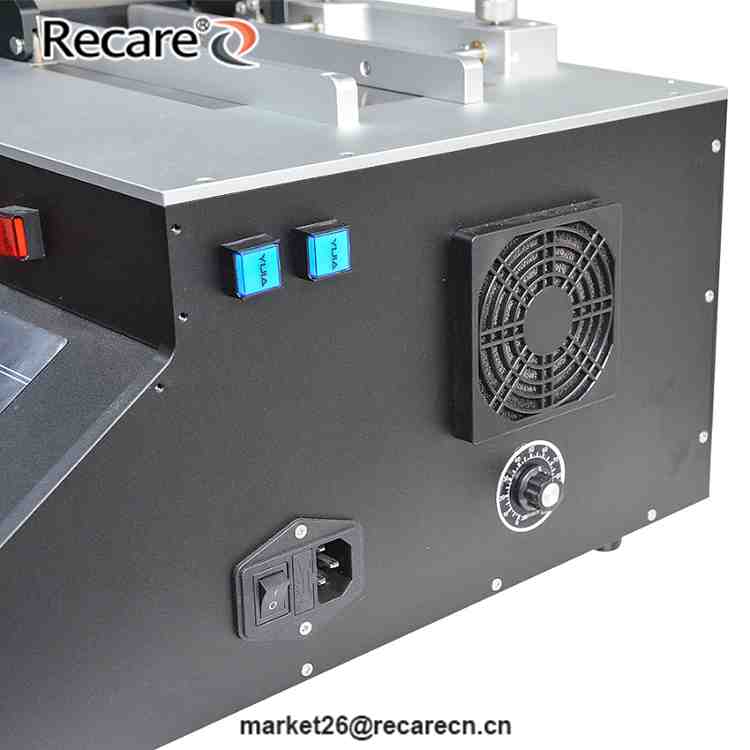

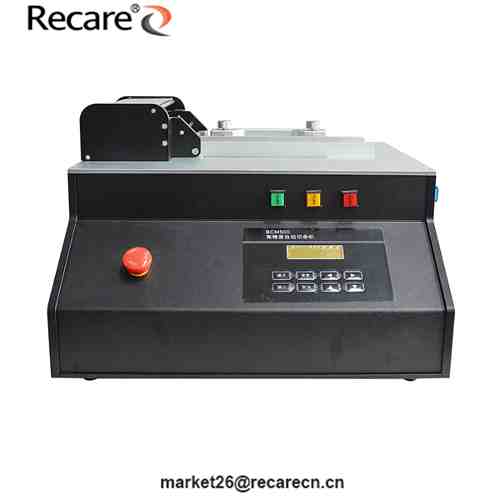

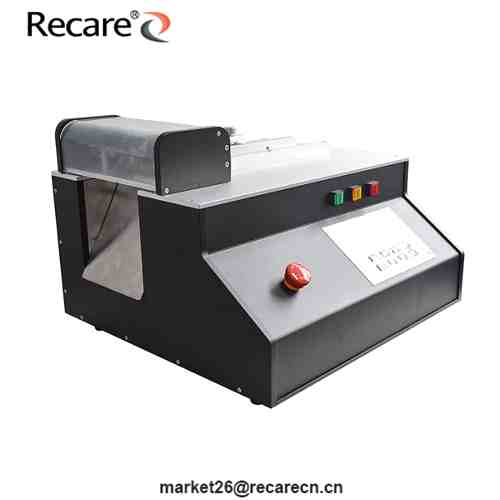

test strip cutter China lateral flow manufacturing equipment

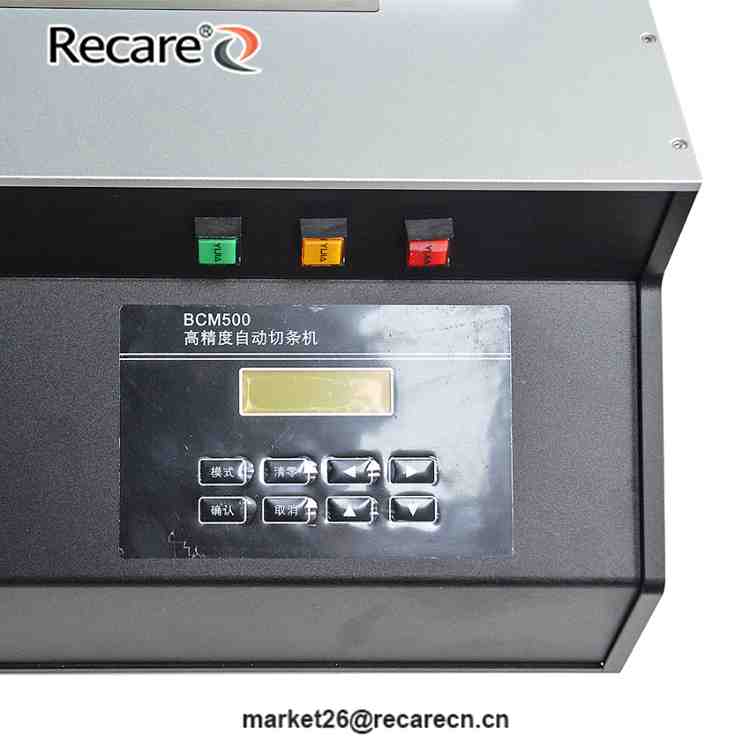

Product model: BCM500
Input power: ~220V±22V 200W 50Hz～60Hz
Dimensions: 428mm×385mm×292mm
Weight: about 26.5kg
Feed width: 56～94mm
Applicable material thickness: ≤4mm
Chopping width: 0.50～9.99mm
Chopping accuracy: ±0.05mm
Chopping speed: 0～220 times/min
Material residue: 10mm
test strip cutter China lateral flow manufacturing equipment

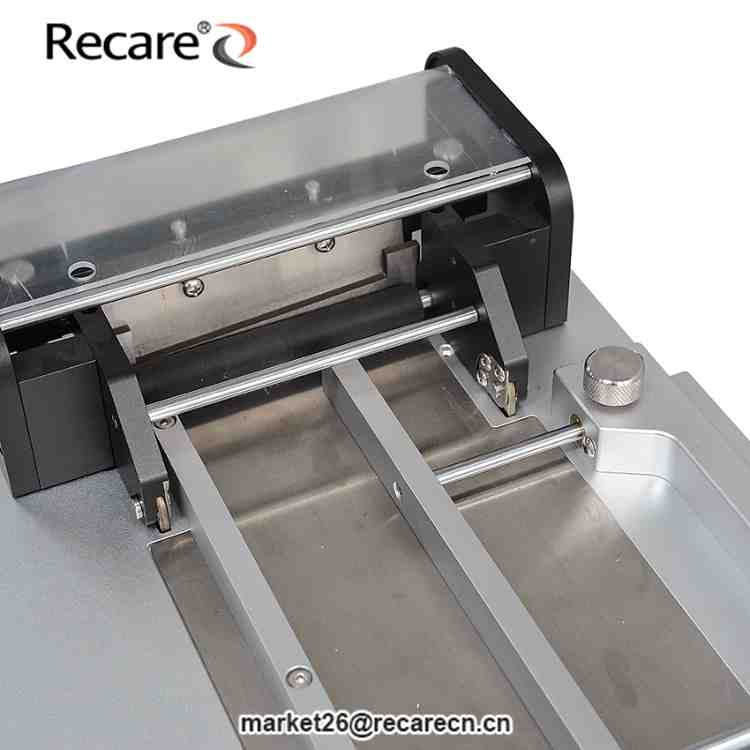

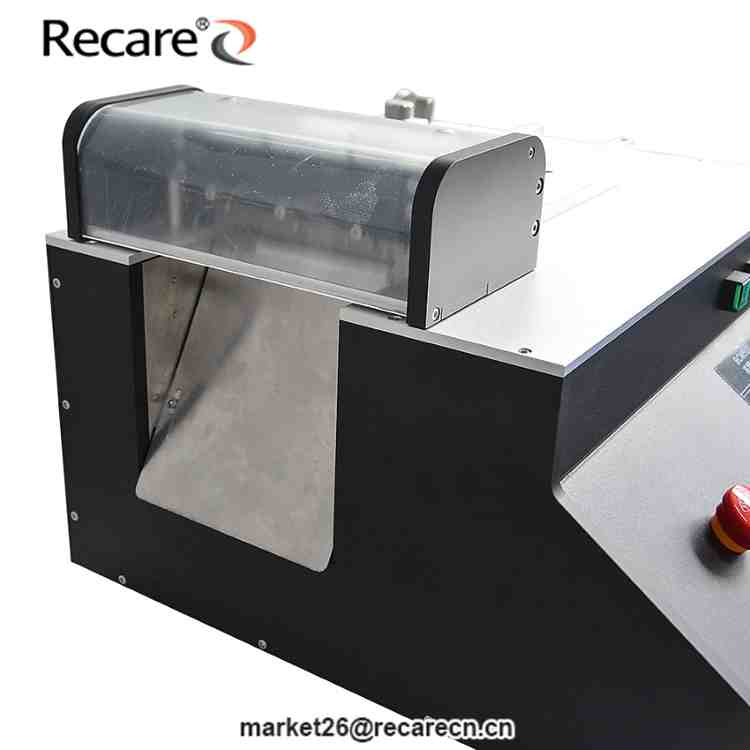

The test strip cutter uses a stepper motor to drive the mechanical structure to effectively and accurately control the feed width. The high-speed and high-torque motor drives the cutter assembly to cooperate with the feed component to quickly cut the material. The strip cutter lateral flow runs fast and cuts accurately, which can effectively reduce labor costs and improve work efficiency.
Features of the high speed test strip cutter:
1. More efficient: automatic strip cutting machine up to 800 times/minute, achieving a daily maximum production capacity of more than one million people
2. More stable: imported motor + mechanical structure, the High precision test strip cutter has a longer service life.
Recare--We have been committed to producing the best strip cutter.
