automated Precison lateral flow reagent dispenser & sprayer
Power Supply: 220V±22V 50Hz~60Hz 2A
Power：200W
Size: 568mmx378mmx349mm
Weight: About 26.5KG
Operate size: 476*112mm / 350*85mm
Film Tension Efficiency: 200 sheets/hour
Spraying Efficiency: 400 lines/hour
Platform speed: 50~125mm/s
Min line space: 3mm
Dispensing concentration: 0.20~2.00ul/cm
Spraying concentration: 1.00~9.99 ul/cm
Minimum Aspiration and Dispensing Volume: 1ul
Residual Volume: Approximately 0
Precision: ±0.1mm
Max Stored Program: 100 programs
Syringe capacity(Standard): 500ul/1000ul

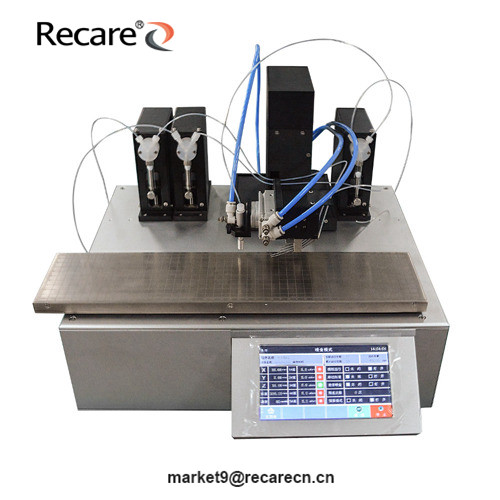

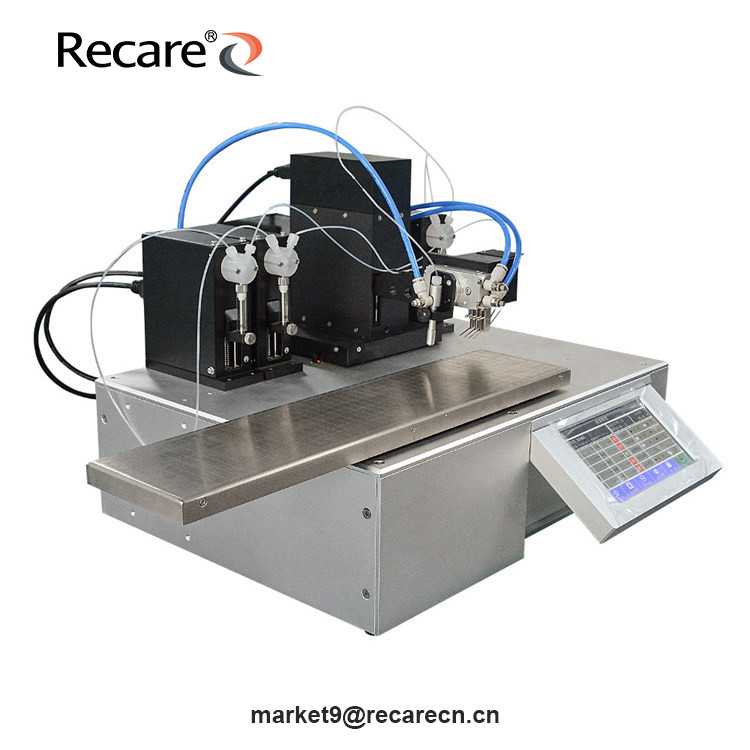

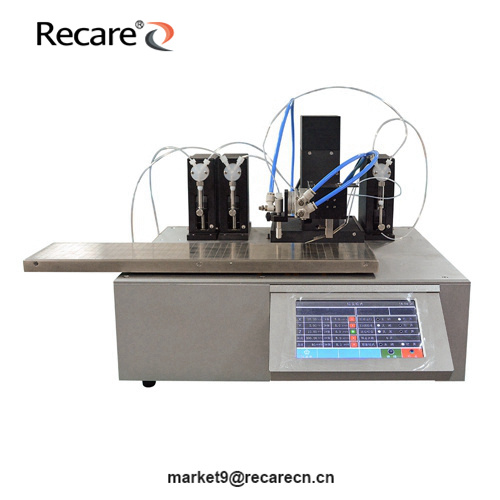

automated precison lateral flow reagent dispenser & sprayer
Recare advanced lateral flow reagent dispenser is the ultimate solution for precision and consistency. Experience superior performance and accuracy with our state-of-the-art dispensing technology.

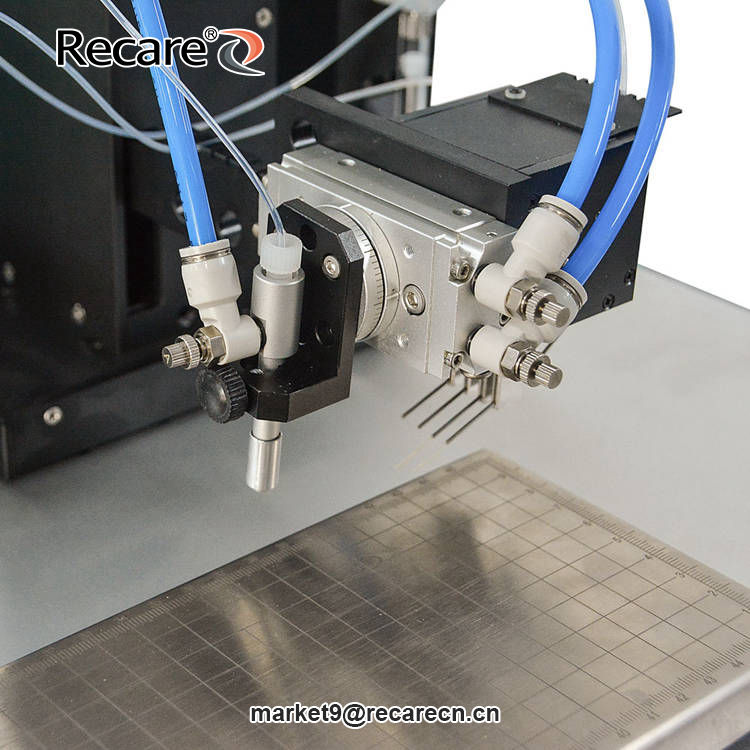

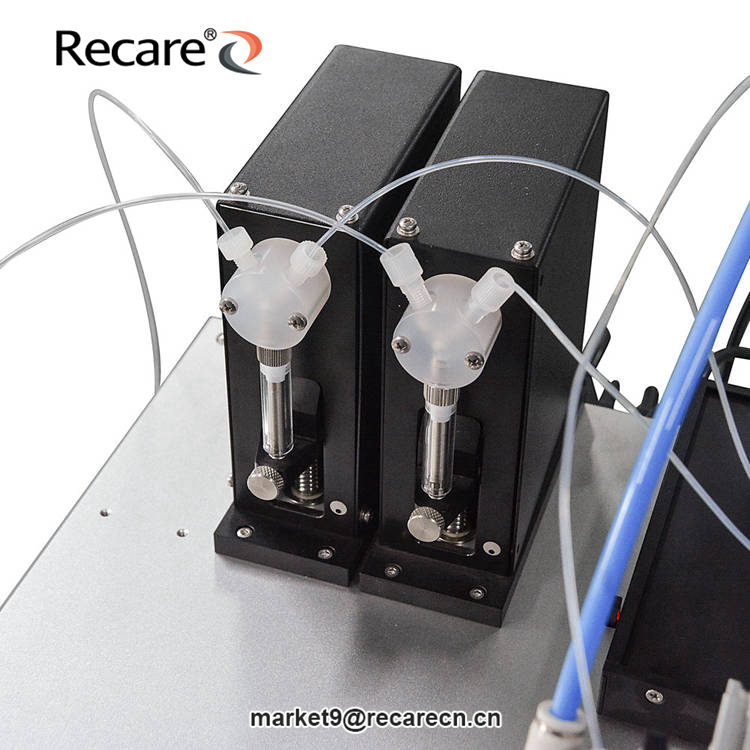

The precison dispenser and sprayer machine utilizes a high-precision step pump for liquid delivery, ensuring control over non-pulsating liquid flow and creating a uniform, single solution line on the membrane. This instrument can perform solution labeling to meet the coating requirements of NC membrane antibody solutions on gold-labeled strips and solution spraying for gold spraying solution coating needs.
The striper reagent dispensing system features closed-loop motor control, guaranteeing precise and stable operation. And this automated lateral flow reagent dispenser ensures accurate line spacing and uniform, uninterrupted lines.

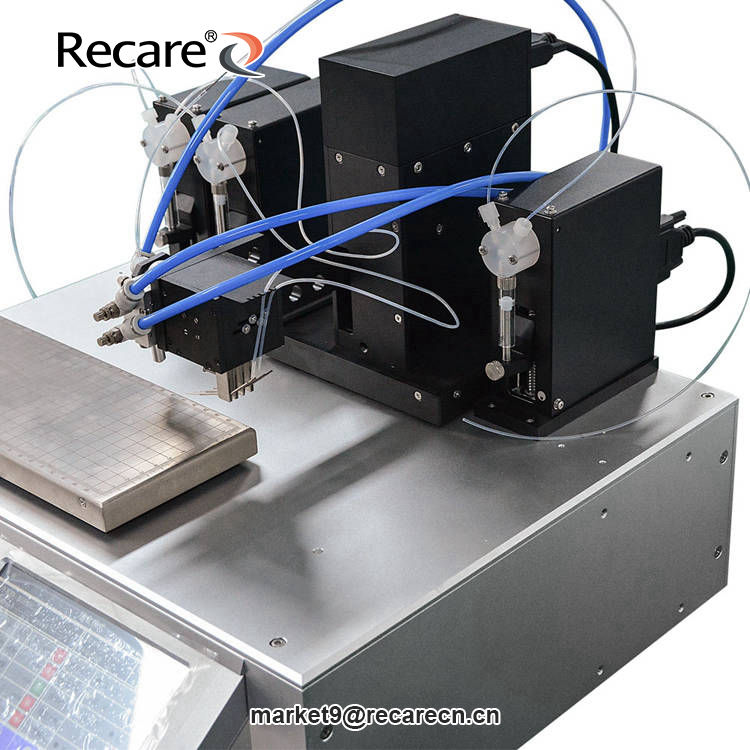

Ideal colloidal gold test dispenser using most advanced PLC as the main control component. This reagent dispenser enhances reliability and efficiency in your diagnostic tests manufacturing. If you need lateral flow reagent dispenser for your research and products, please feel free to contact us.
