lateral flow dispenser IVD rapid test production in China
Power supply: 90-250VAC 50/60HZ 2A
Dimensions: 440(L)x380(W)x420(H) mm
Spray volume error: +1%
Positioning accuracy: +0.1mm
Slide speed: 0-99.9mm/s
Spray point range:> 0.5ul
Spray volume range: 0.2-99.99 ul/cm
Standard capacity of gold spray pump: 250ul (1000ul/2500ul optional

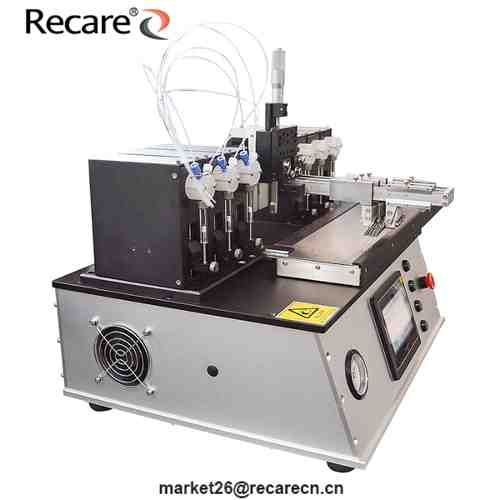

lateral flow dispenser IVD rapid test production in China

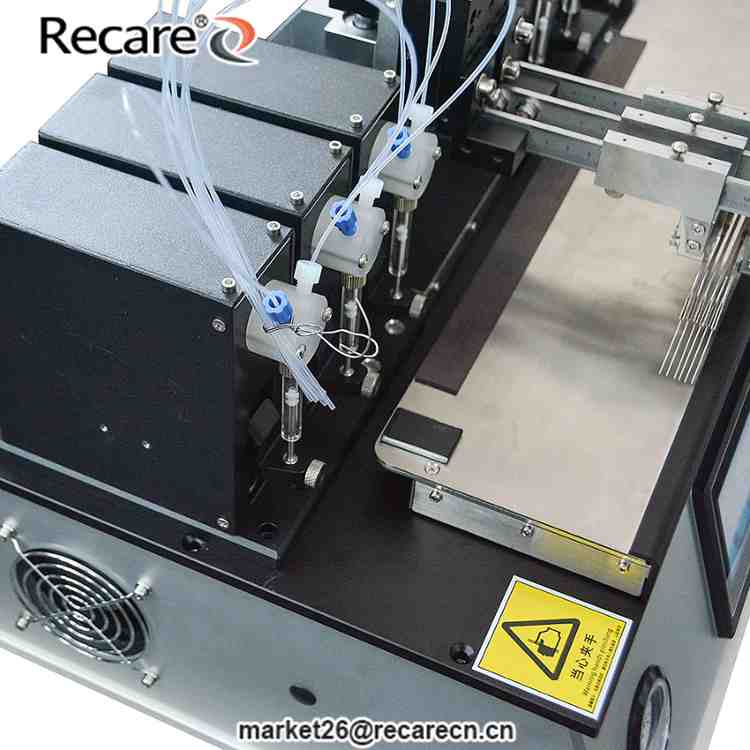

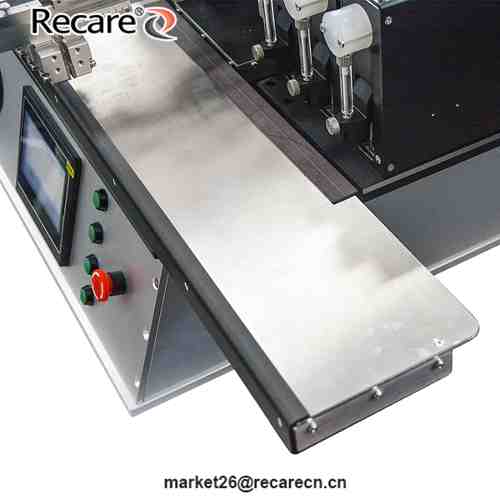

The lateral flow dispenser is used in the production process to evenly draw lines, spray gold labels and spray dots on sheet materials such as nitrocellulose membranes and filter paper. The Striper Reagent Dispensing System is one of the professional production equipment for rapid diagnostic reagents such as colloidal gold, latex, blood sugar, and fluorescence.

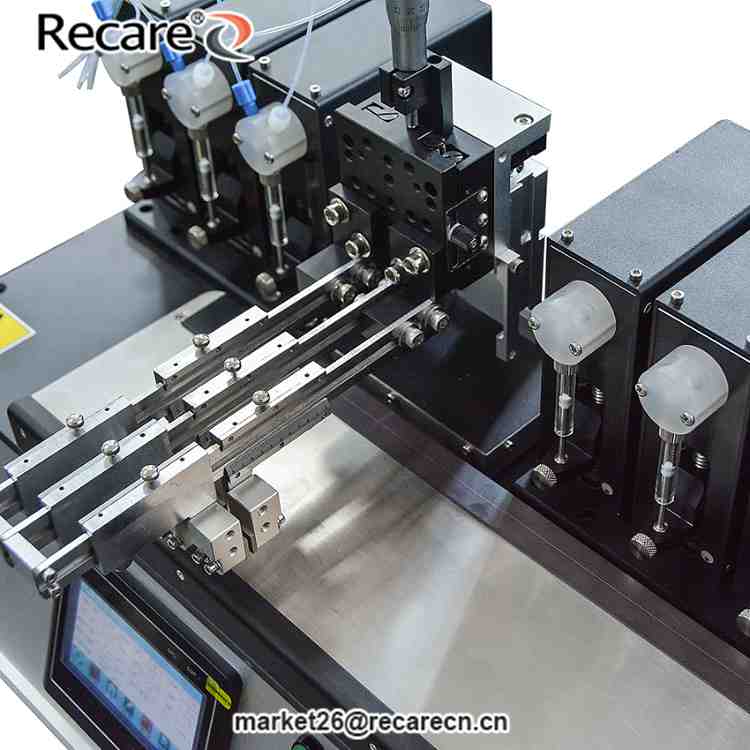

Three major features of the Rapid Reagent Dispenser: drawing lines, spraying lines, and spraying dots
Advantages of the Colloidal Gold Dispenser and Sprayer:
1. Precison dispenser and sprayer machine：Precision liquid discharge system to ensure uniform, stable and continuous lines, no pressure to make quantitative products

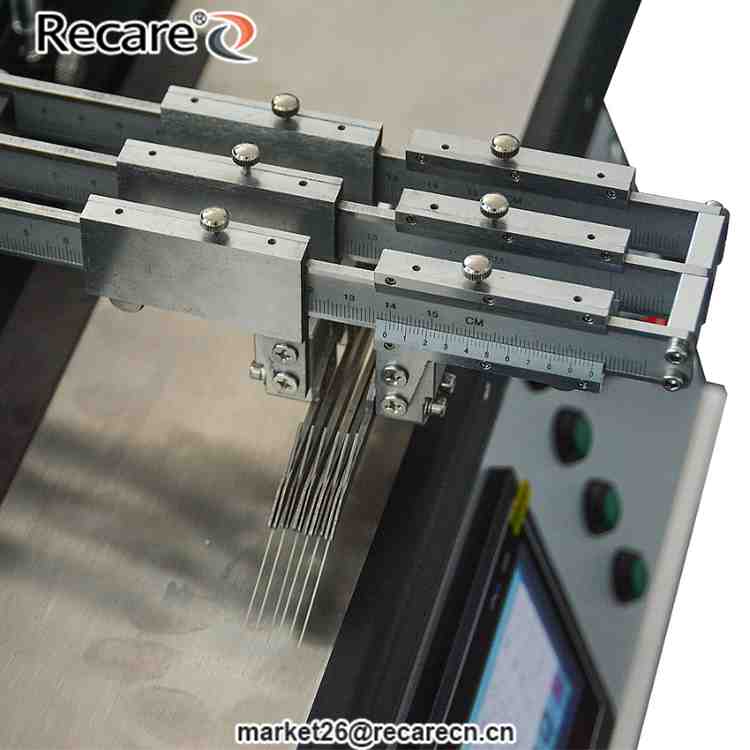

2. Precison dispenser and sprayer：Unique film-scribing pen and nozzle design, drawing lines will not damage the NC membrane, and the spray lines are uniform.
We have been in the test paper industry for 25 years, and we are committed to researching and producing high-quality products.
